High Nickel Alloy
SVJB is a trusted supplier and stockist of High Nickel Alloys, offering an extensive range of nickel-based products used in demanding industrial applications. High Nickel Alloys are known for their exceptional corrosion resistance, heat resistance, and strength in extreme environments.

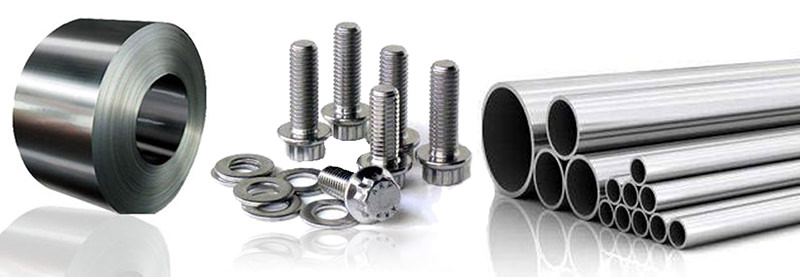

We supply premium grades of Inconel, Monel, Hastelloy, and Pure Nickel (Nickel 200/201) in various forms such as sheets, plates, coils, pipes, tubes, bars, and fittings. These alloys are ideal for chemical processing, marine engineering, aerospace, and power generation industries.
All materials are available with complete certifications and comply with international standards such as ASTM, ASME, and UNS. Our high nickel products are known for their durability, corrosion resistance, and precision finish.
FEATURES OF HIGH NICKEL ALLOYS
- Corrosion Resistance: Excellent resistance to acids, seawater, and oxidizing agents.
- High Temperature Stability: Retains mechanical strength at elevated temperatures.
- Versatility: Available in sheets, plates, pipes, fittings, flanges, rods, wires, and more.
- Certified Materials: All products supplied with complete MTC, complying with ASTM/ASME/UNS standards.
- Applications: Widely used in marine, chemical processing, aerospace, and power plants.
Chemical Composition
| Alloy name | UNS | % Ni | % Cr | % Fe | % Mo | % Cu | % Co | % Other |
| 200 | N02200 | 99 min | ||||||
| 400 | N04400 | 65 | 32 | |||||
| B-2 | N10665 | 68 | 2 | 28 | ||||
| 70-30 | N06008 | 70 | 30 | |||||
| C-Grade | N06006 | 60 | 16 | bal | ||||
| 600 | N06600 | 76 | 16 | 8 | ||||
| 601 | N06601 | 60 | 23 | bal | Al - 1.3 | |||
| X-750 | N07750 | 70 | 15 | 7 | Ti - 2.5 Al - 0.7 Nb - 1.0 |
|||
| 825 | N08825 | 42 | 21 | 25 | 3 | 2 | ||
| G-3 | N06985 | bal | 22 | 20 | 7 | 2 | ||
| 800 | N08800 | 32 | 21 | 45 | W - 3.5 | |||
| C-276 | N10276 | bal | 15 | 5 | 16 | |||
| C-22 | N06022 | bal | 21 | 4 | 13 | |||
| 59 | N06059 | bal | 23 | 1.5 max | 16 | |||
| C-2000 | N06200 | bal | 23 | 3 max | 16 | 1.6 | ||
| 686 | N06686 | bal | 21 | 2 max | 16 | W - 3.7 | ||
| 617 | N06617 | 44.5 min | 22 | 3 max | 9 | 12 |
Mechanical Composition
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| Alloy 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40 % |
| Alloy 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Alloy 800 | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| Alloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN |
| Nickel 200 | 2.4066 | N02200 | НП-2 | N-100M | NW 2200 | NA 11 | Ni 99.2 |
| Monel 400 | 2.4360 | N04400 | МНЖМц 28-2,5-1,5 | NU-30M | NW 4400 | NA 13 | NiCu30Fe |
| Inconel 600 | 2.4816 | N06600 | МНЖМц 28-2,5-1,5 | NC15FE11M | NCF 600 | NA 13 | NiCr15Fe |
| Incoloy 800 | 1.4876 | N08800 | ЭИ670 | Z8NC32-21 | NCF 800 | NA 15 | X10NiCrAlTi32-20 |
| Hastelloy C22 | 2.4602 | N06022 | – | – | NW 6022 | – | NiCr21Mo14W |
Inconel Alloys
| Standards: | ASTM B168 / B564 / B366 |
| Grades: | Inconel 600, 625, 718 |
| Forms: | Sheets, Pipes, Flanges, Fittings, Rods |
Monel Alloys
| Standards: | ASTM B127 / B564 / B366 |
| Grades: | Monel 400, Monel K500 |
| Features: | Excellent seawater resistance and strength |
Hastelloy Alloys
| Standards: | ASTM B622 / B619 / B564 |
| Grades: | Hastelloy C22, C276, B2 |
| Applications: | Acid process plants, heat exchangers, reactors |
Nickel 200 / 201
| Standards: | ASTM B162 / B366 / B564 |
| Grades: | Nickel 200 (Commercially Pure), 201 (Low Carbon) |
| Features: | Excellent electrical and thermal conductivity |
